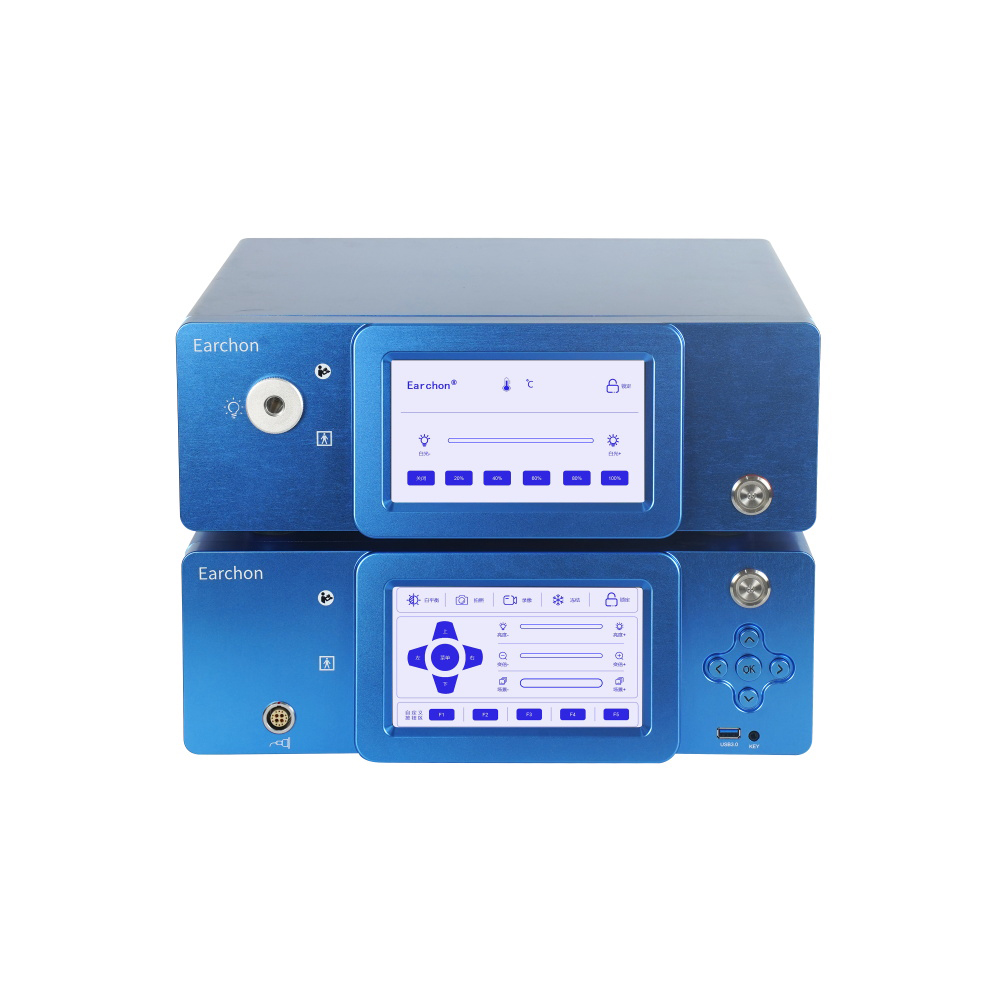

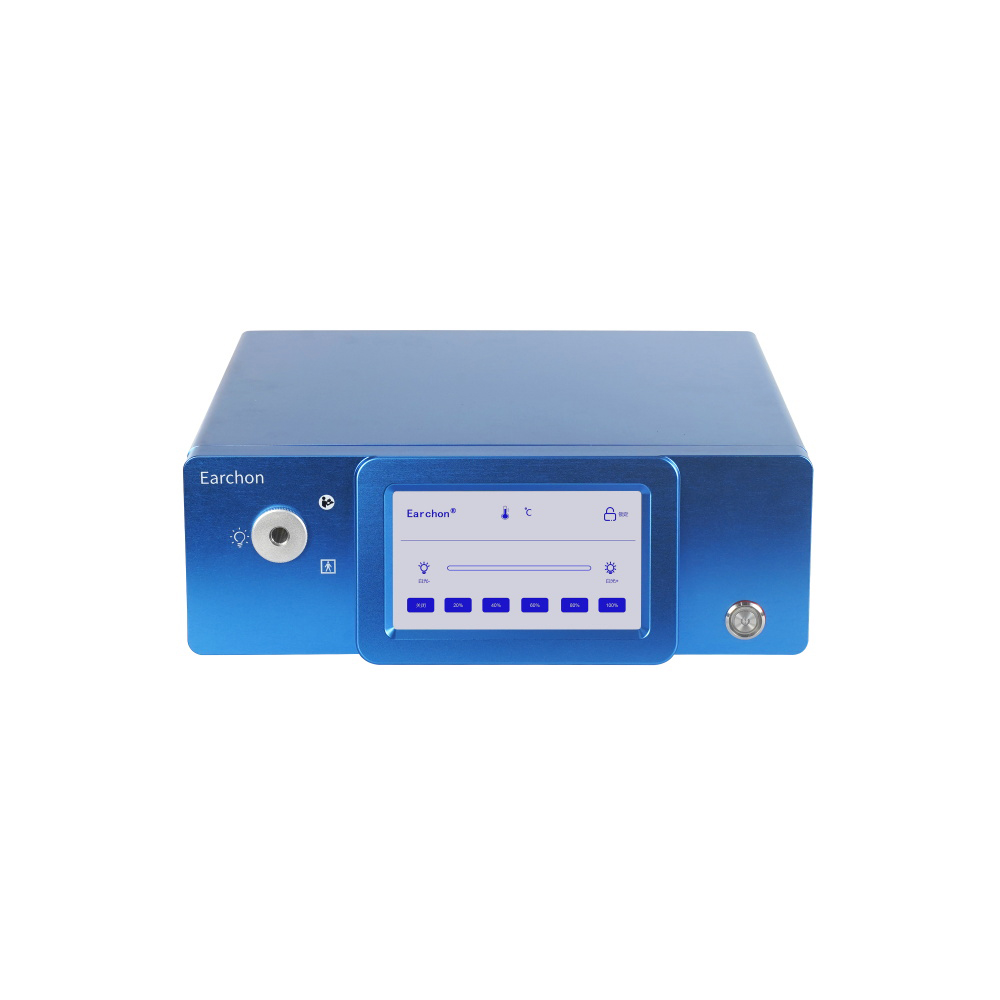

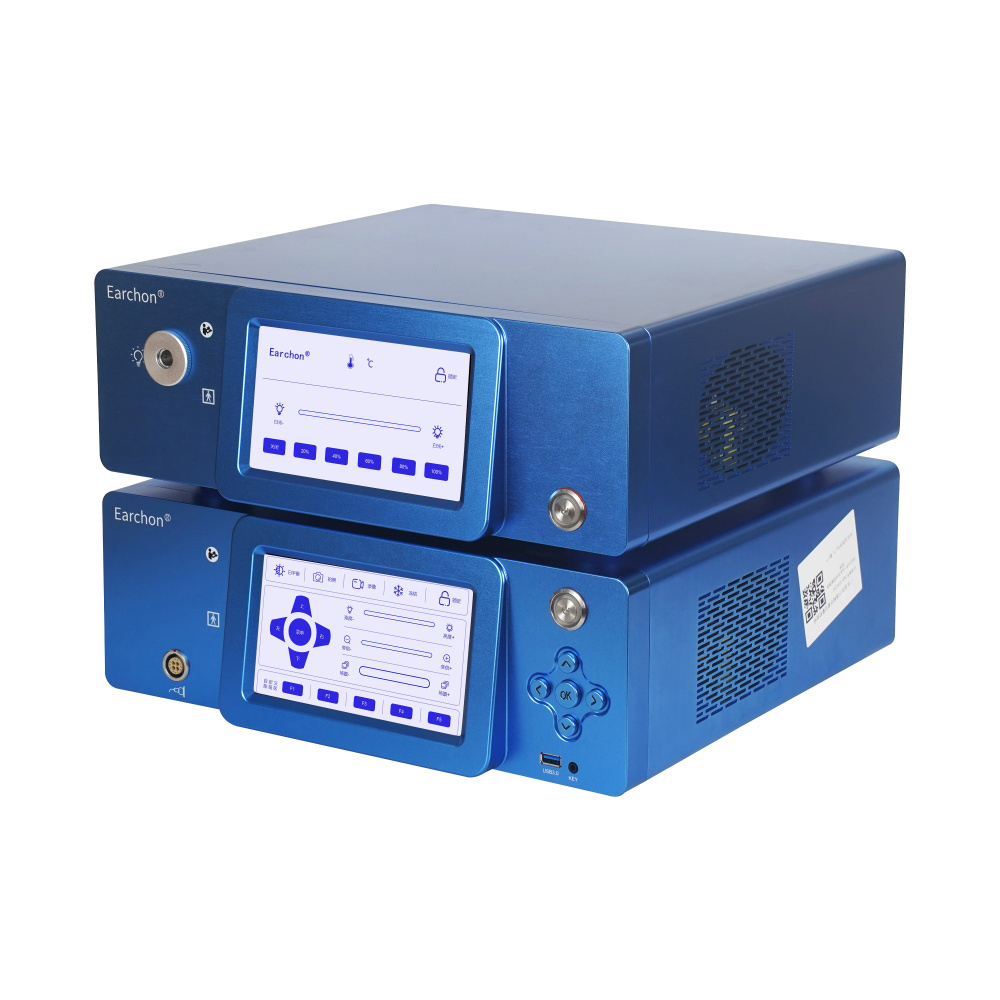

YCSX-20
| Quantity: | |
|---|---|
Function
3840x2160P,4K quality, 50/60 frames, 8 megapixels;

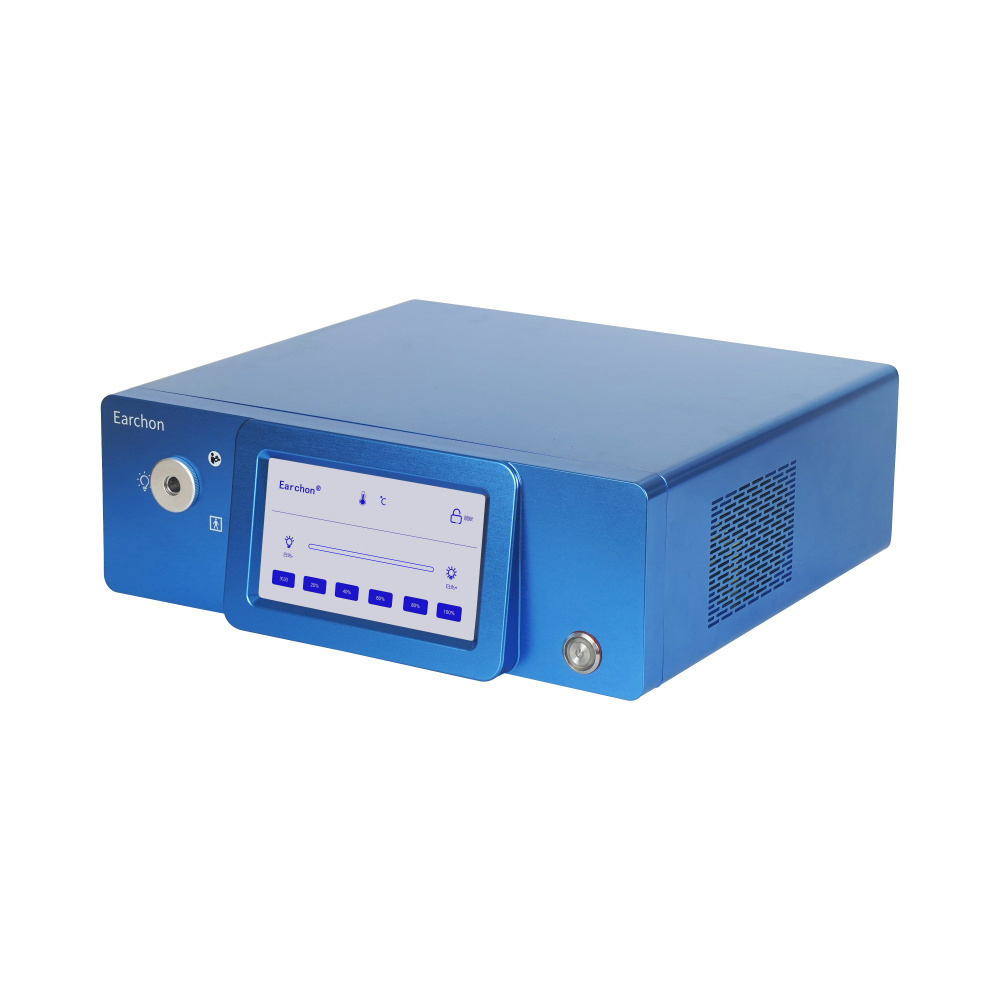

Medical ultra-high brightness LED cold light source, 20 level brightness can be adjusted;
Built-in USB image storage, one key switch photo/video function;
lt has the function of non-destructive amplification;
The first domestic output interface adopts four coaxial, better stability;
7 inch touch screen + mechanical double buttons;
With scene memory function, the service life is up to 50,000 hours;
With one key sleep function, reduce energy consumption and extend service life.
Parameter
| Model | YCSX-20 |
| Resolution ratio | 3840*2160P/60 Frames |
| Image sensor | 1/1.8”1/1.2”COMS |
| Color | 3500k,6500k,7500k,User-defined |
| Photo | 8 million/JPG |
| Record | 3840*2160P/30-120 minutes /MP4 |
| Output interface | HDMI(2.0)+HDMI(1.4)+DVI+SDI+3xUSB3.0+Network interface |
| Coding technique | H264/H265 |
| Custom Keys | WB,Freeze,Record,Photo,Scene switch,Zoom,Color,Brightness |
| Playback | Videos and pictures |
| Mouse/Keyboard/Foot step switch | Support |
| Language | Chinese,English |
| Features | 1.4K ultra HD picture quality,50/60 frames,8 million pixels; 2.Built-in USB storage,one key switch photo/video function; 3.Non-destructive amplification function,can enlarge the picture observation; 4.The output interface of four copper,better stability 5.Touch screen +mechanical double buttons |
